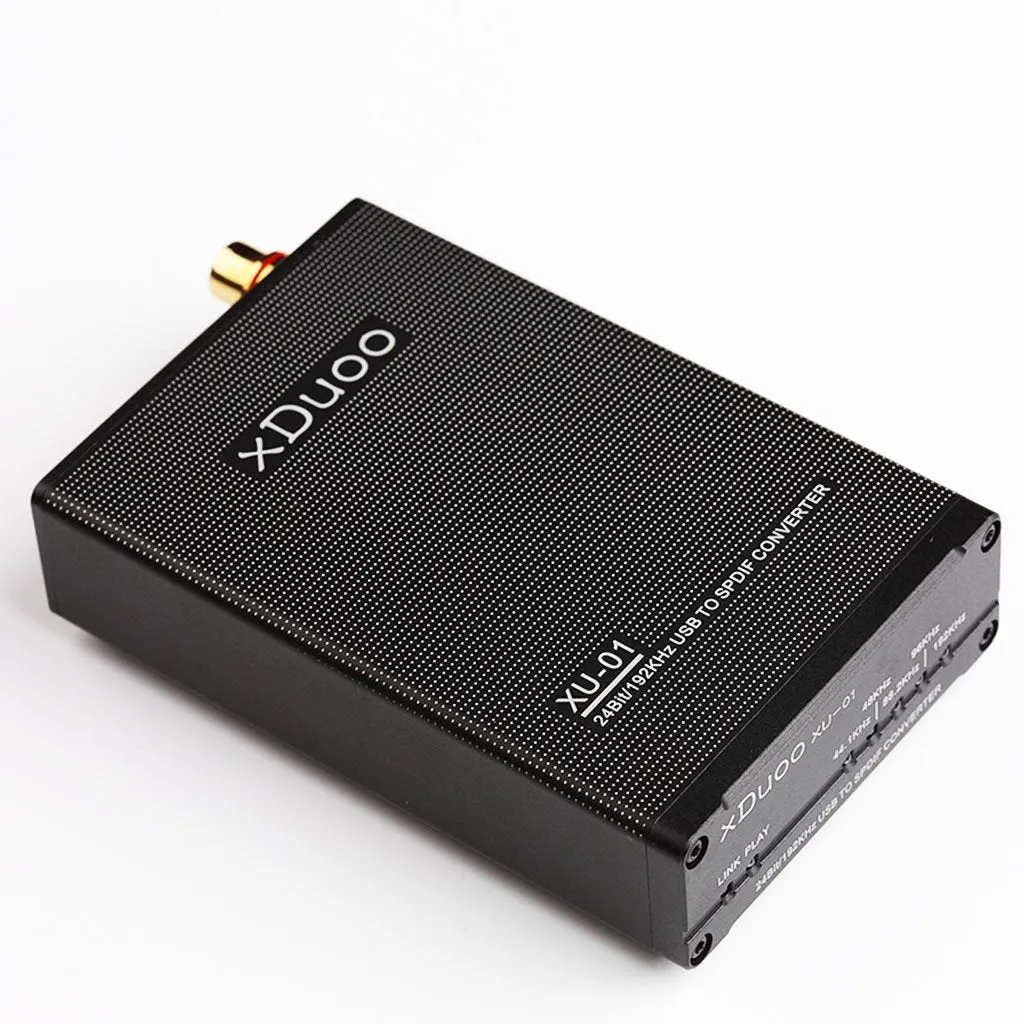

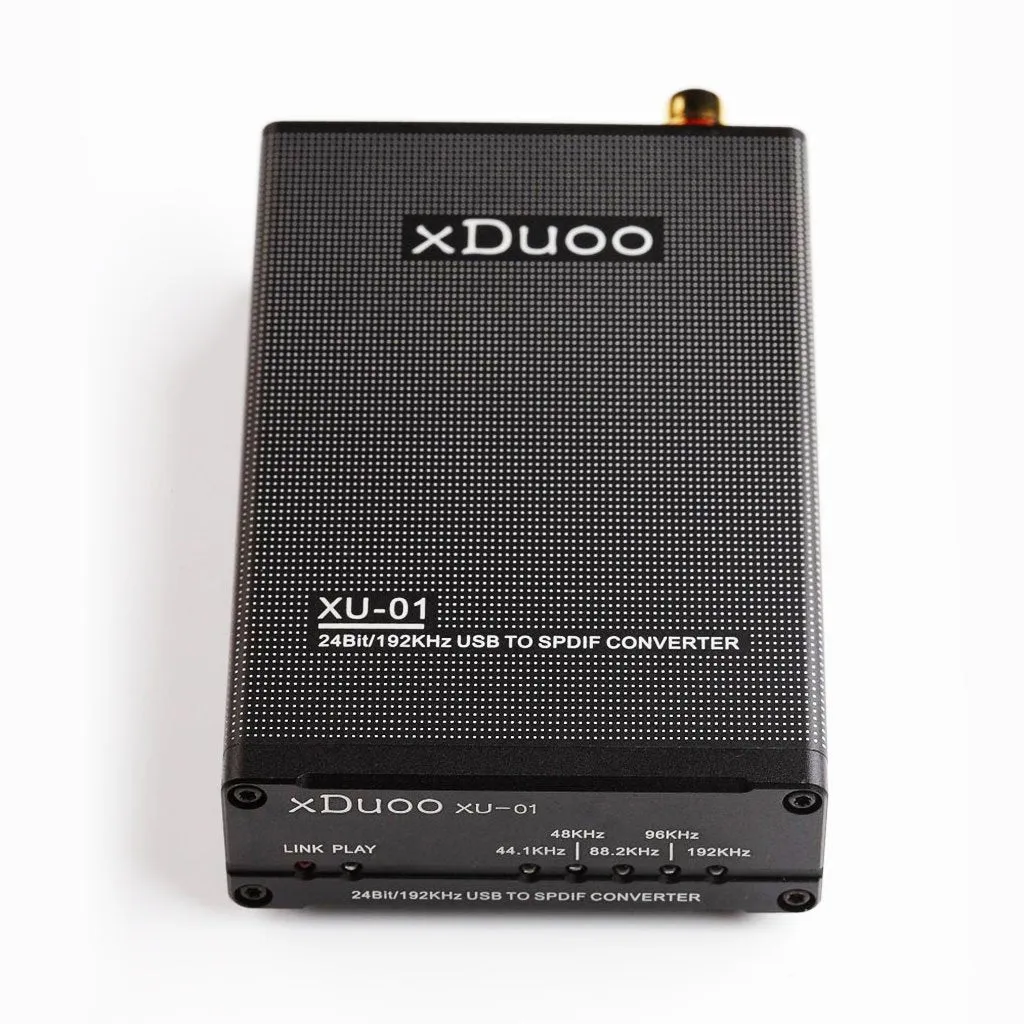

• XU-01 is a HI-FI USB to SPDIF converter. It accepts up to 24Bit/192KHz high resolution audio signal. It has 1 way coaxial signal output, 1 way Optical signal output. Its power supply is USB power.

• Adopts XMOS chip for USB signal input, PC jitter-free USB Audio with Asynchronous Transfer Mode, provides I2S interface for decoding, can support up to 192KHz/24Bit USB signal,  support WASAPI，ASIO，KS Kernel Stream Mode.

• Adopts 3X Clock structure design, ensures the DAC to obtain a first class sound performance. 3 correspondence level clocks are high precision, individually control multiple of 44.1KHz, multiple of 48KHz and USB signal transmission, dedicated for USB asynchronous transmission, and reduced Jitter to undetectable level.

• 1 way High-quality coaxial signal output, its sample rate as same as input.

• 1 way High-quality Optical signal output, its sample rate same as input.

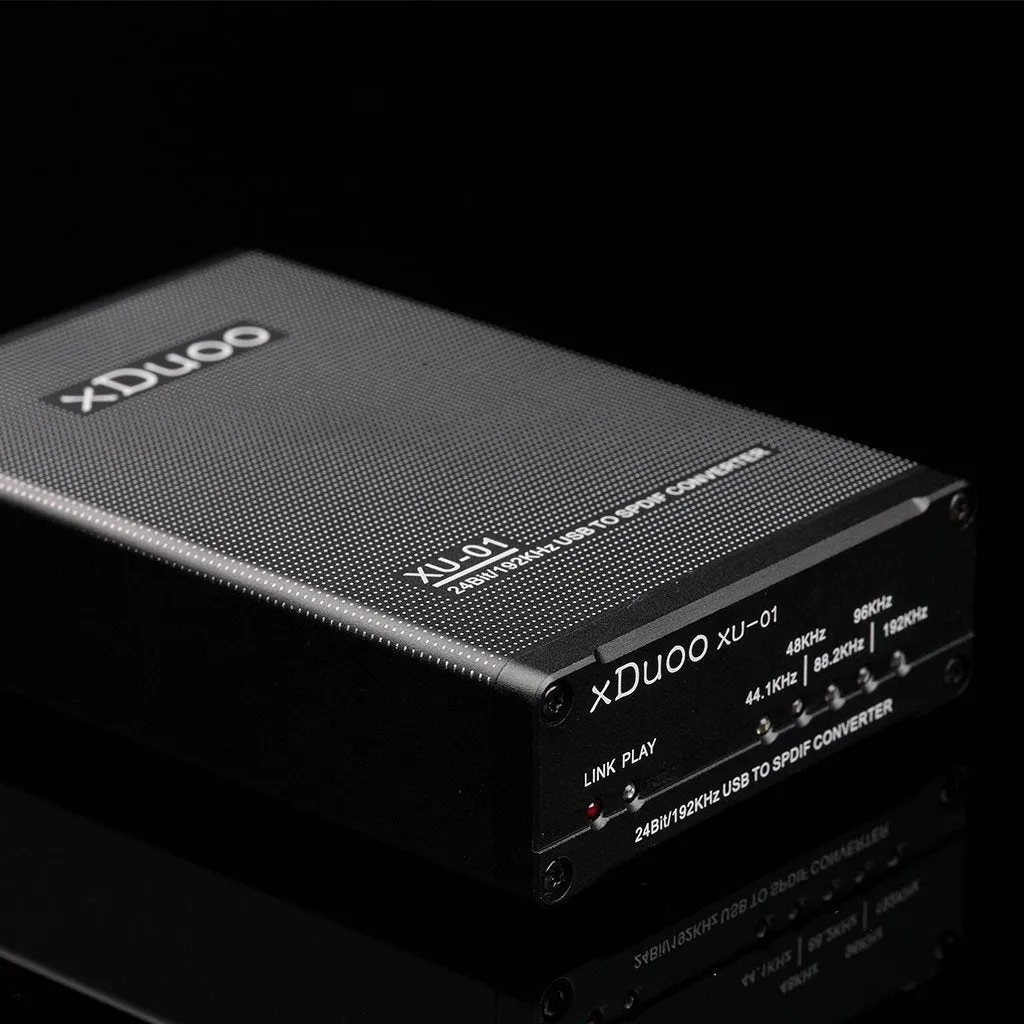

• The LED display of digital audio sampling frequency on external make you understand about the sampling frequency of music.

• Use aluminum-shielded case to prevent external interference noise.

SPECIFICATIONS

• Power Source: USB Power
• Compliant OS:  Win XP,Vista,Win7,Win8 (must install driver)
• MAC OS X (do not need to install drivers)
• Supported sampling: USB input: Maximum 192kHz/24bit
• Output: Coaxial Port 75Ohms cover gild RCA connector
• Optical fiber Port high-speed signal transmission connector (25Mbps NRZ)
• Frequency Range: 20Hz-20KHz(±0.5dB)
• THD N: 0.001% （1KHz）
• S/N: 120dB
• Size: 114*63*23mm
• Weight: 150g

What's in the box

• xDuoo XU-01
• CD
• Micro USB Cable
• 5 pcs rubber feet
• User Manual
